SPECIFICATIONS

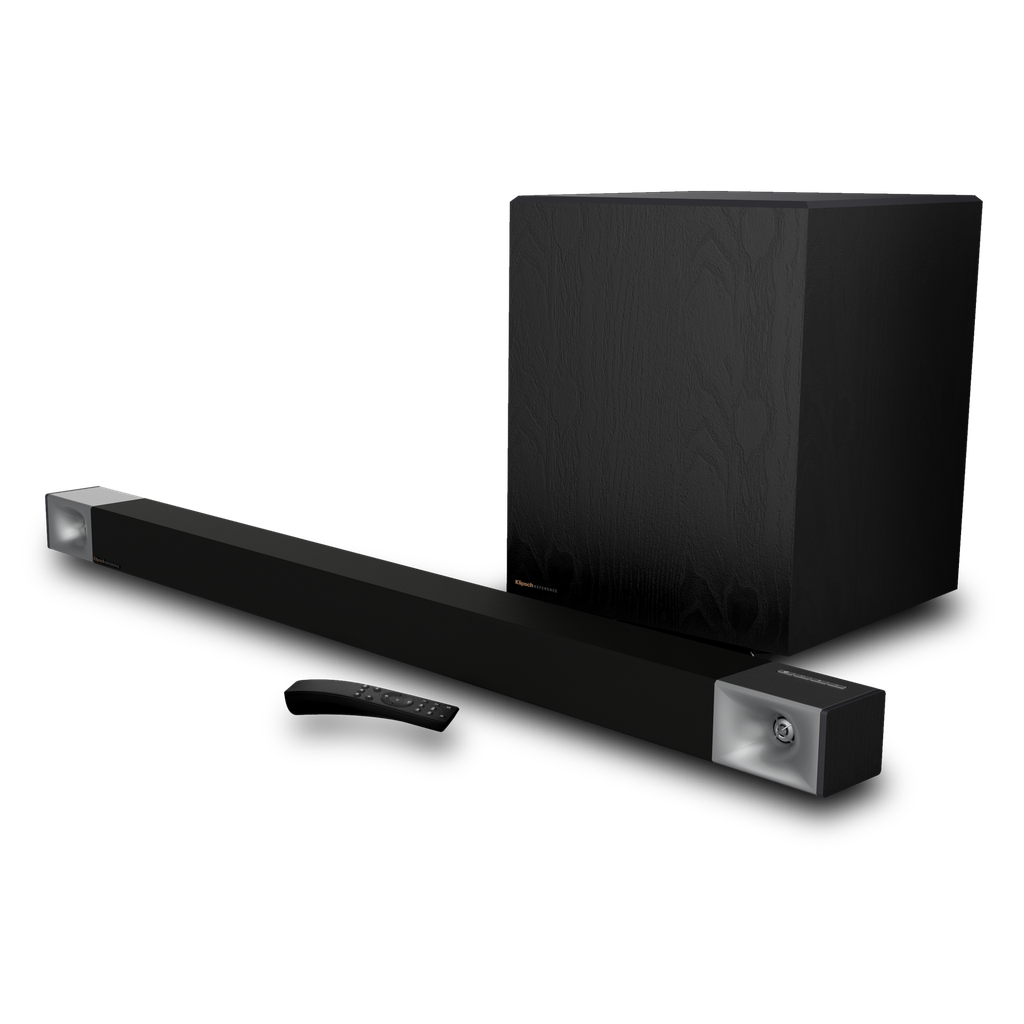

SPEAKER SYSTEM 48" 3.1 Dolby Atmos soundbar with 10" wireless subwoofer
MAX ACOUSTIC OUTPUT 107dB
HIGH FREQUENCY DRIVERS (3) 1" (25.4mm) soft dome tweeters mated to Tractrix® horns
MIDRANGE (4) 3" (76.2mm) high output oval fiber composite cone woofers
SUBWOOFER 10" (254mm) wireless ported subwoofer
ENCLOSURE TYPE Bar: Wood • Subwoofer: Wood
SYSTEM POWER 800W
FREQUENCY RESPONSE 28-20kHz
INPUTS HDMI-eARC • (2) HDMI • Bluetooth® • 3.5mm Analog • Optical Digital
OUTPUTS Subwoofer (RCA) Output
DIMENSIONS (BAR) 48” (121.9cm) W x 2 7/8” (7.3cm) H x 3 3/8 (8.6cm) D
DIMENSIONS (SUBWOOFER) 14 1/4" (36.8) W x 18 1/2" (47.1cm) H x 14 1/2 (36.8cm) D
FINISH Black (interchangeable walnut end caps included)
VOLTAGE 100-240V 50/60Hz internal power supply
WEIGHT 22 lbs (9.98 kg)
INCLUDED ACCESSORIES LED Backlit Remote control
(2) 1.5m power cord (Region specific)
(2) Keyhole mounting clip(With 1/4 - 20 Screw) Wall mount template
(2) AA batteries
(1) 1.5m HDMI Cable
MOUNTING OPTIONS 1/4-20 Keyhole Mount
Included slim-depth wall brackets
